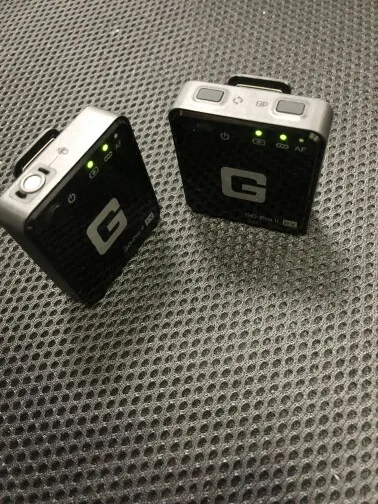

This is a wireless microphone system with small size and full functions. The transmitter has a built-in electret microphone, which can be directly clipped to the collar for use, or it can be connected to a lavalier microphone via an external input interface, when it is used as a small bodypack transmitter.
This product uses the ISM global unrestricted 2.4G frequency band for transmission. The receiver and transmitter are automatically paired successfully within 2 seconds after turning on, and the effective use distance reaches 50 meters (open and wide occasions). Both the receiver and the transmitter use clear and bright LED lights to display the current input and output audio dynamic messages, the output volume is adjustable, and the 3.55mm TRS output is used to connect to digital/SLR cameras, camcorders, recorders, tablets, mobile phones and other devices Assist in picking up high-fidelity audio.
It is suitable for applications such as interviews, micro video recording or commercial presentations.

Product Features：

·Small and easy to carry.
·Using 2.4G ISM global unlimited frequency band transmission.
·Widely compatible with computers, digital or SLR cameras, camcorders, voice recorders, tablets, brains, and mobile phones.
· Both the receiver and transmitter use clear and bright LED lights.
·Built-in electret microphone, colleagues also support an external lavalier microphone, the output volume is adjustable.
· Automatic connection or one-key pairing after power-on.
·Built-in lithium battery, using USB 5V charging.
·When the transmitter or receiver is not connected, the device will be switched on and off automatically within 2 minutes.

System Specifications

Transmission frequency band：
Audio frequency response:100Hz~16KHz+3dB
Dynamic range:93dB(Circuit performance)
Signal to noise rayio:93dB(Circuit performance)
Maximum input voltage:97dB SPL(Built-in microphone)
Pairing type:Automatic
Effective Working Distance:50~60m(there is block)
100m(in open space)
Working temperature:-5℃ to + 50 ℃

Receiver Specifications

Transmission frequency
Transmission type:frequency hopping/digital FSK
Receiving sensitivity:-86dBm
Antenna method:Built-in F type antenna
Display mode:multi-function LED display mode
Power requirements:built-in lithium battery,standard USB 5V charging
via TYPE-C interface
Battery life>7 hours
Output connector:3.5mm TRS
Working temperature:-5℃ to + 50 ℃
Dimensions:50mm*44.5mm*15mm
Weight:35g

Transmitter Specifications

Transmission frequency
Modulation type：frequency hopping/digital FSK
Transmit power:10dBm
Antenna method:Built-in F type antenna
Microphone pickup method：omnidirectional （built-in microphone and
External lavalier）
Display mode:multi-function LED display mode
Power requirements:built-in lithium battery,standard USB 5V charging via TYPE-C interface
Battery life>5 hours
Output connector:3.5mm TRS
Working temperature:-5℃ to + 50 ℃
Dimensions:50mm*44.5mm*15mm
Weight:35g
