X180 Wireless Microphone

Product Features
Carrier frequency band: UHF adjustable (630-690MHz)
Digital audio transmission technology
Unique digital ID code pilot technology, ID code 32bit, completely solve the same frequency crosstalk phenomenon.
Ultra low audio delay.
Audio sampling mode: 48KHz.
Frequency range: 50Hz - 18KHz.
Receive automatic scanning
Open environment theory transmission distance: 50-80 meters

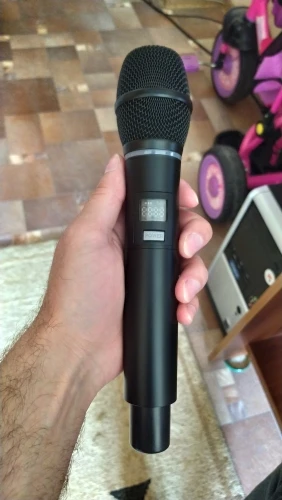

Handheld microphone specifications
Microphone type
Picking up way heart pointing
Frequency range 630 - 690MHz
RF bandwidth 60MHz
Frequency points 48
Transmitting power 10mW
Frequency response 50Hz - 18KHz
Dynamic range 96dB
Harmonic radiation <-50dBc
Distortion <0.1%
Power supply mode One 18650 lithium battery (3.7V)

Receiver specification
Frequency range 630 - 690MHz
RF bandwidth 60MHz
Frequency points 2*48
Signal to noise ratio 96dB
Receive sensitivity -95dBm



If there are multiple sets of products in the same environment, crosstalk may occur (same frequency with the same ID code)
Caused by the following steps, the pairing operation can be completely solved.
1. Adjust the transmission and reception to the shutdown state at the same time;
2. Transmitter: Press the power switch and the frequency hopping button simultaneously for about 4 seconds, the display will flash quickly.
  status;
3. Receiver: Turn on the receiver power, the RF indicator flashes 4 times;
4. Transmitter: Short press the frequency hopping button to exit pairing.
Power switch
2. Frequency hopping switch
Power switch
2. RF LED

Frequency response 50Hz - 18KHz
Distortion 0.05%
Dynamic range 96dB
Receive delay 2.5ms
Power supply mode 12000mA lithium battery (3.7V)
