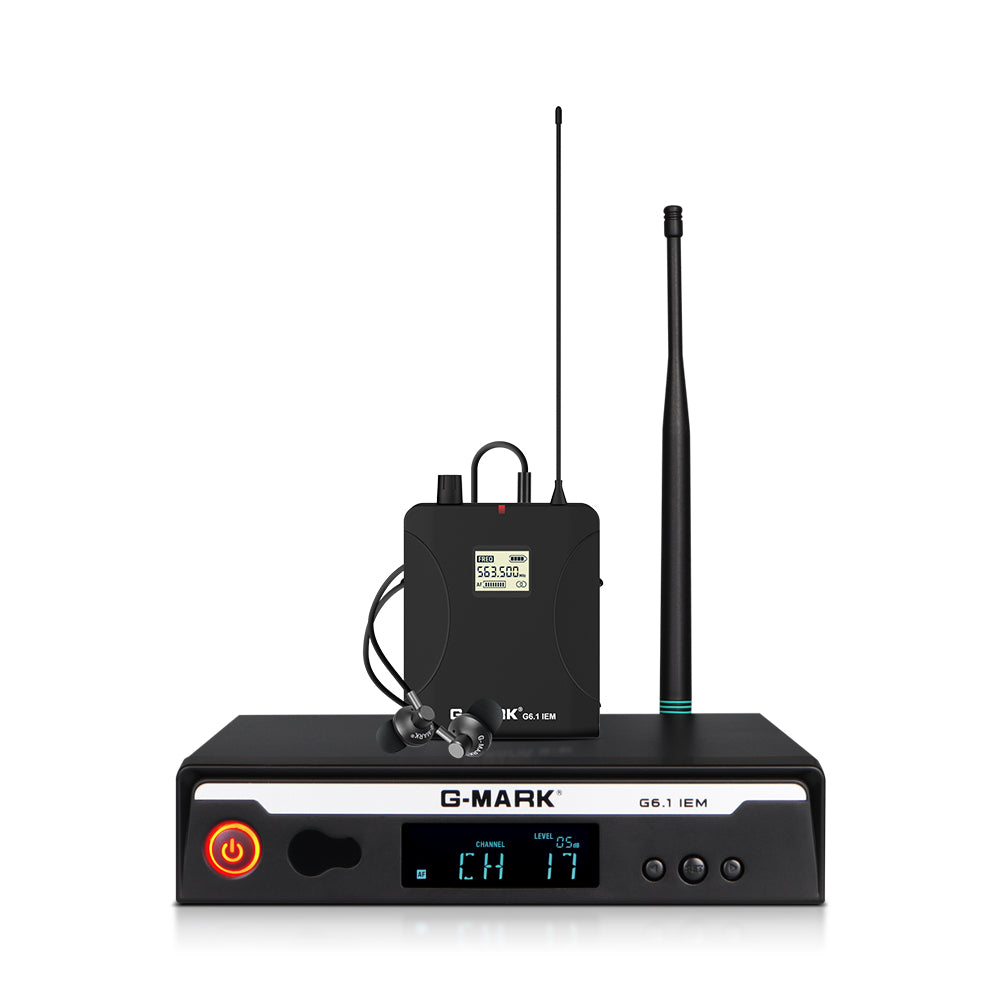

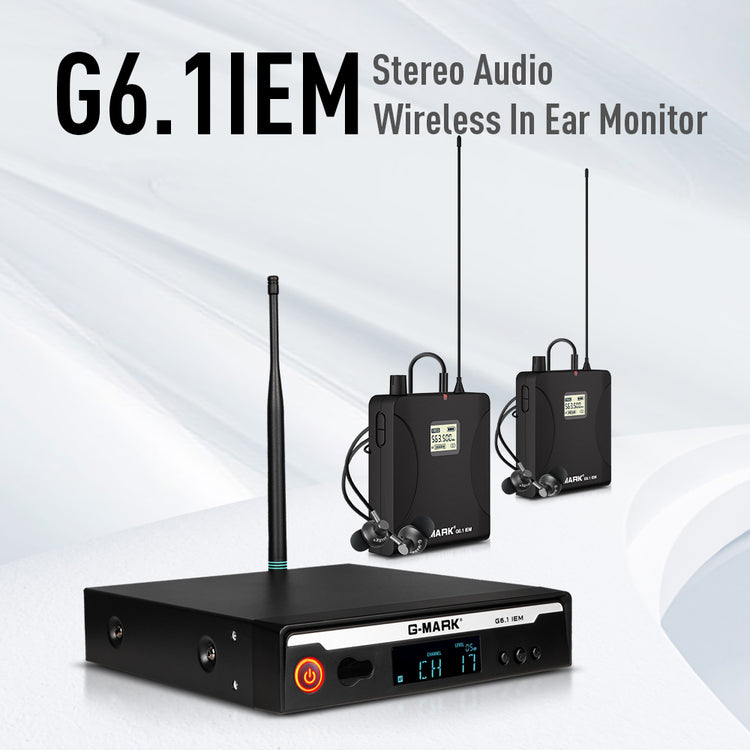

In Ear Monitor G-MARK G6.1IEM UHF Stereo wireless Monitoring System For Stage Singer Guitar Studio Band Performance
- Regular price
- $209.00 USD
- Regular price
-
- Sale price
- $209.00 USD
- Unit price
- per

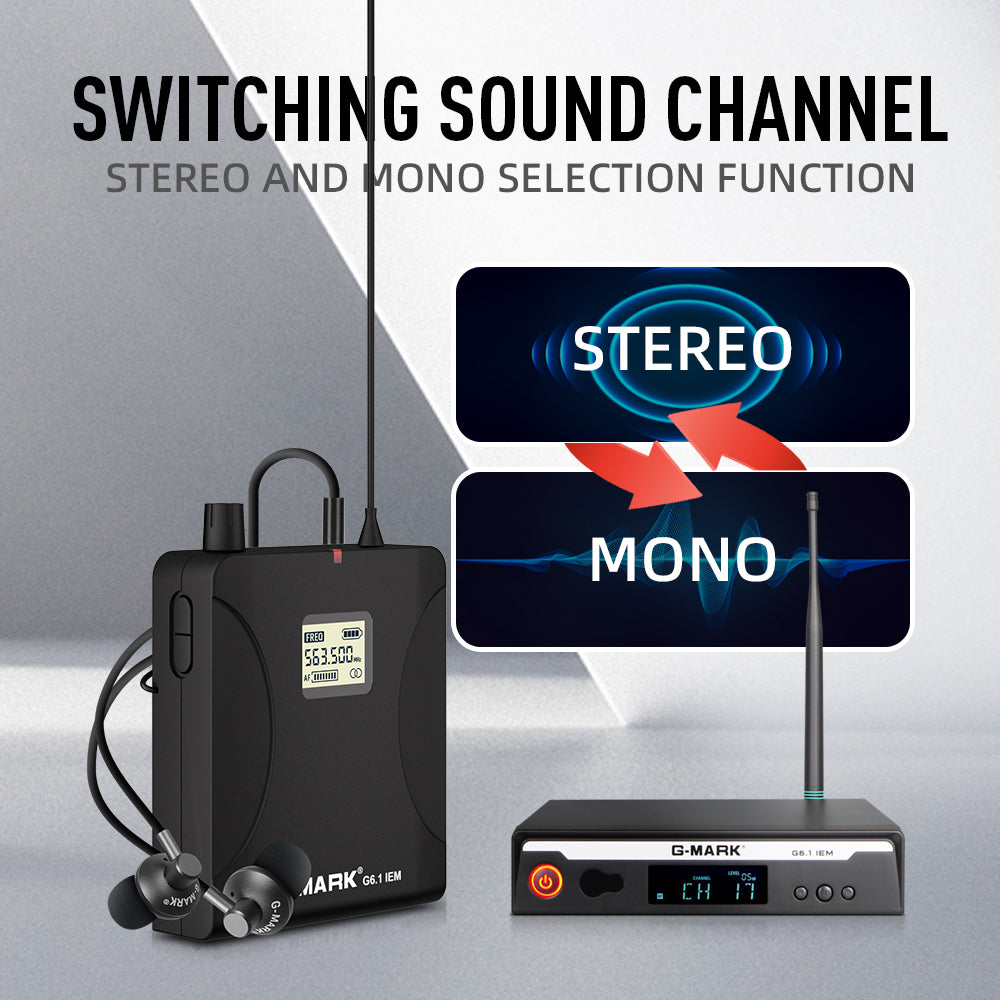

【Switchable Stereo and Mono Modes】 The stage wireless monitoring system adopts advanced digital signal processing technology, adding stereo and mono switching functions. At the same time, the frequency group and frequency can be adjusted, which is convenient for users to switch modes in different occasions.

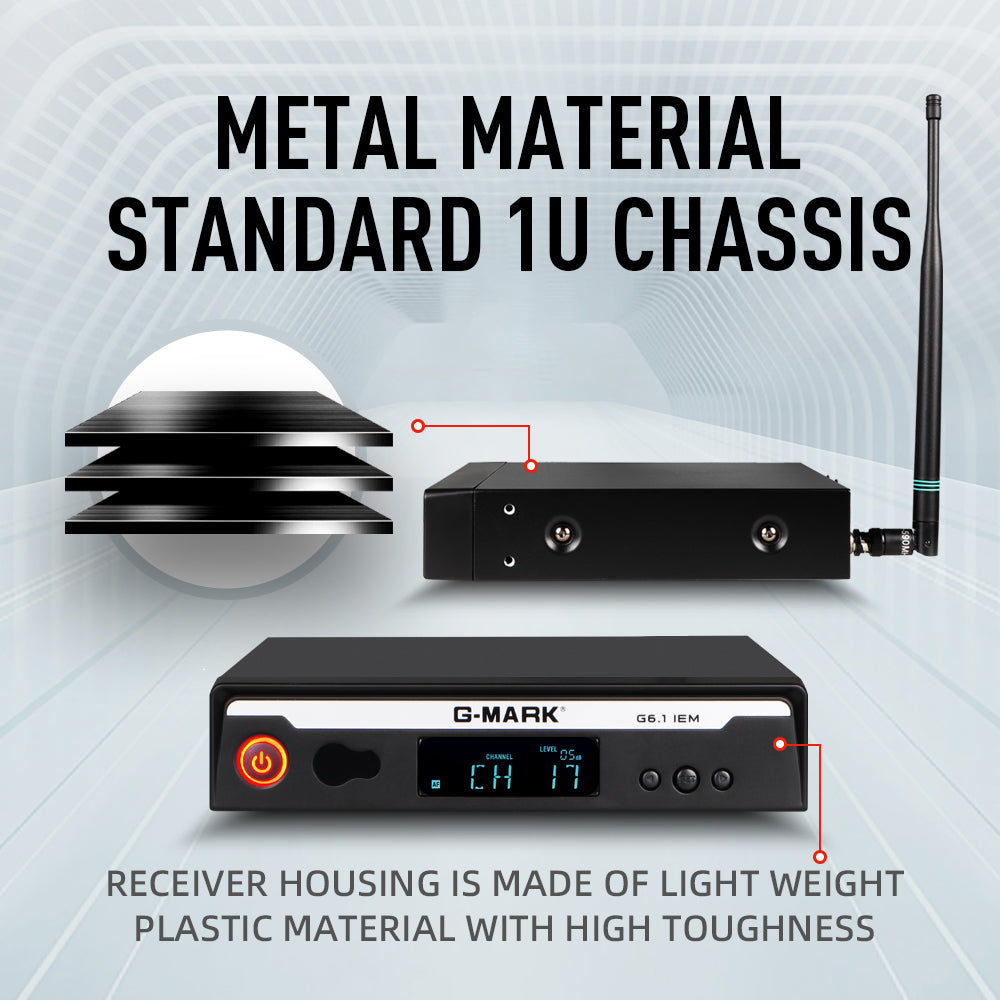

【Enhanced RF Performance up to 320ft】The bodypack receiver adopts advanced digital signal processing technology to increase the signal and eliminate reception blind angle. Enables users to move freely in open spaces with a working distance of 160ft - 320ft. The main unit is made of solid metal material. It is the best choice for wireless in-ear monitoring.

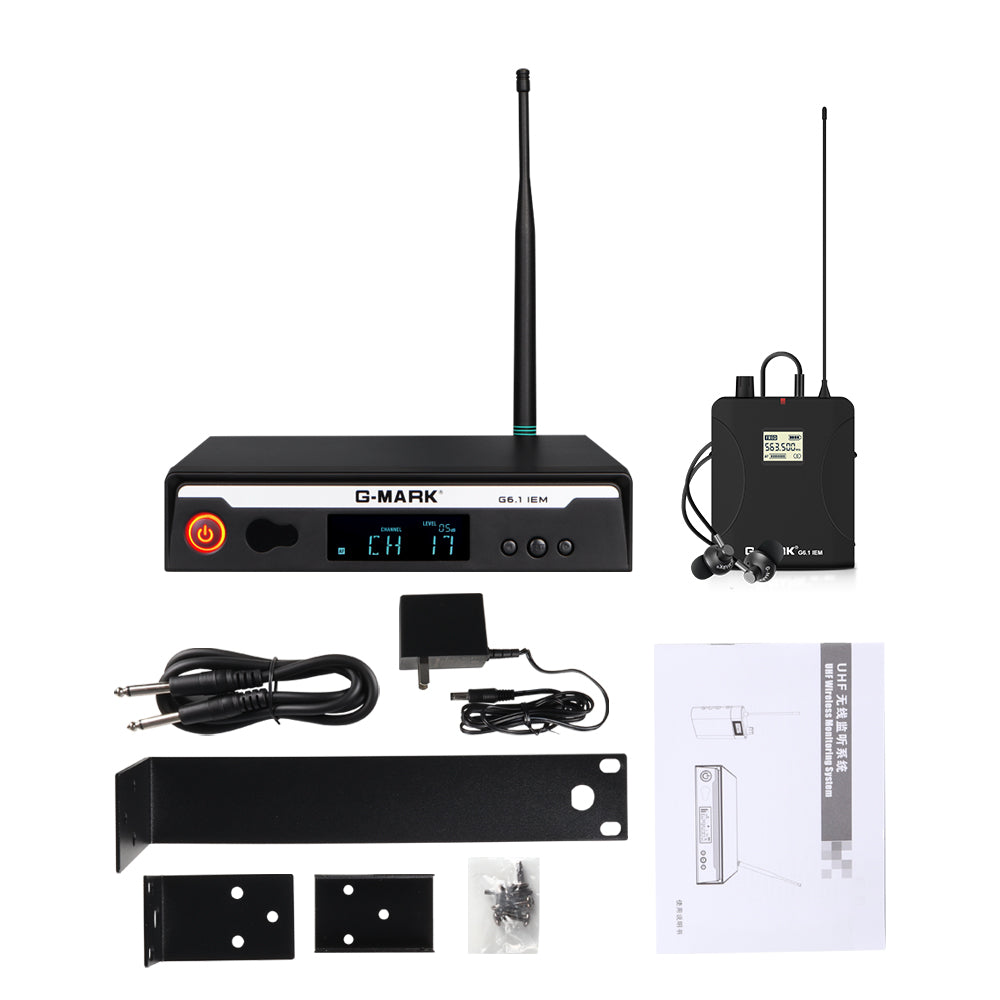

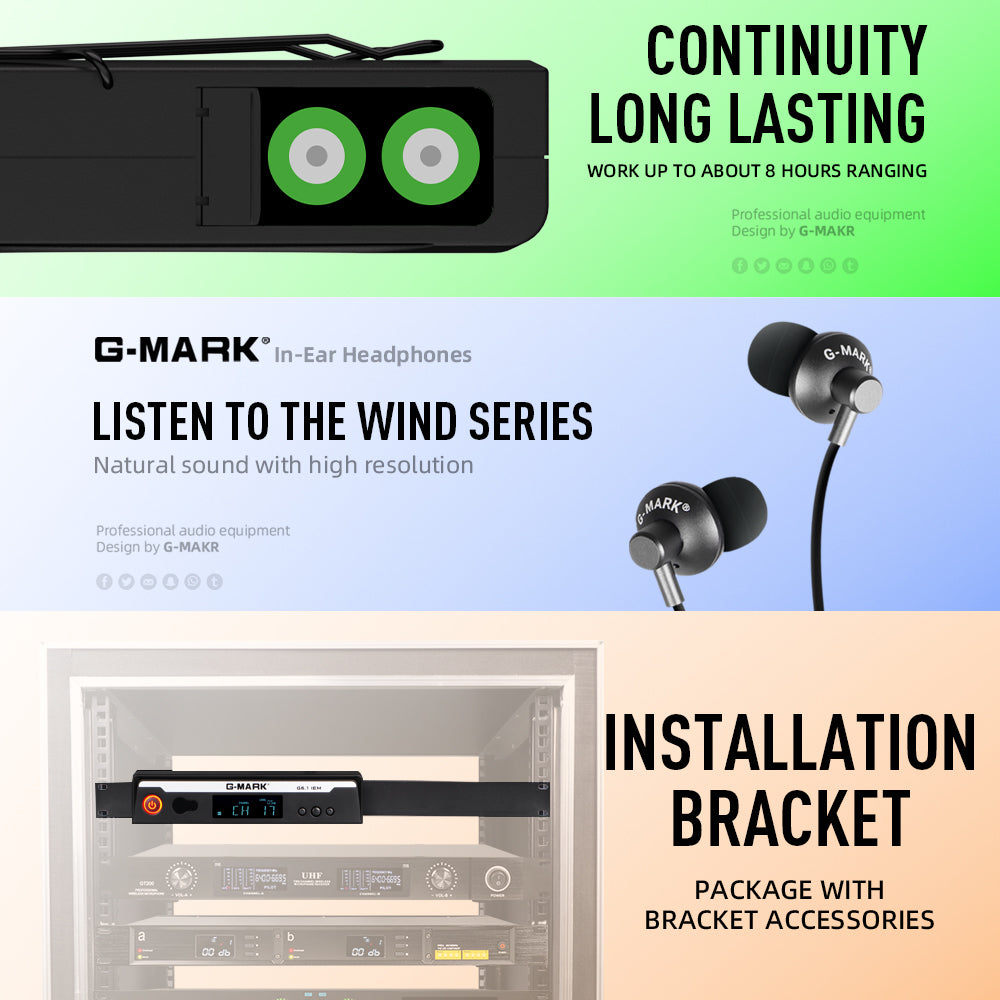

【Expandable Wireless Stage Return 】Unlimited number, unlimited addition of pockets, can be used for team stage monitoring tasks, high-quality earplugs provide pure sound quality and enhanced performance. It's perfect for a variety of wireless in ear monitor comeback events, guitar monitoring, performances, studio recordings, exhibitions, presentations, coaching, and more. The included corner brackets can be mounted on standard rack units.

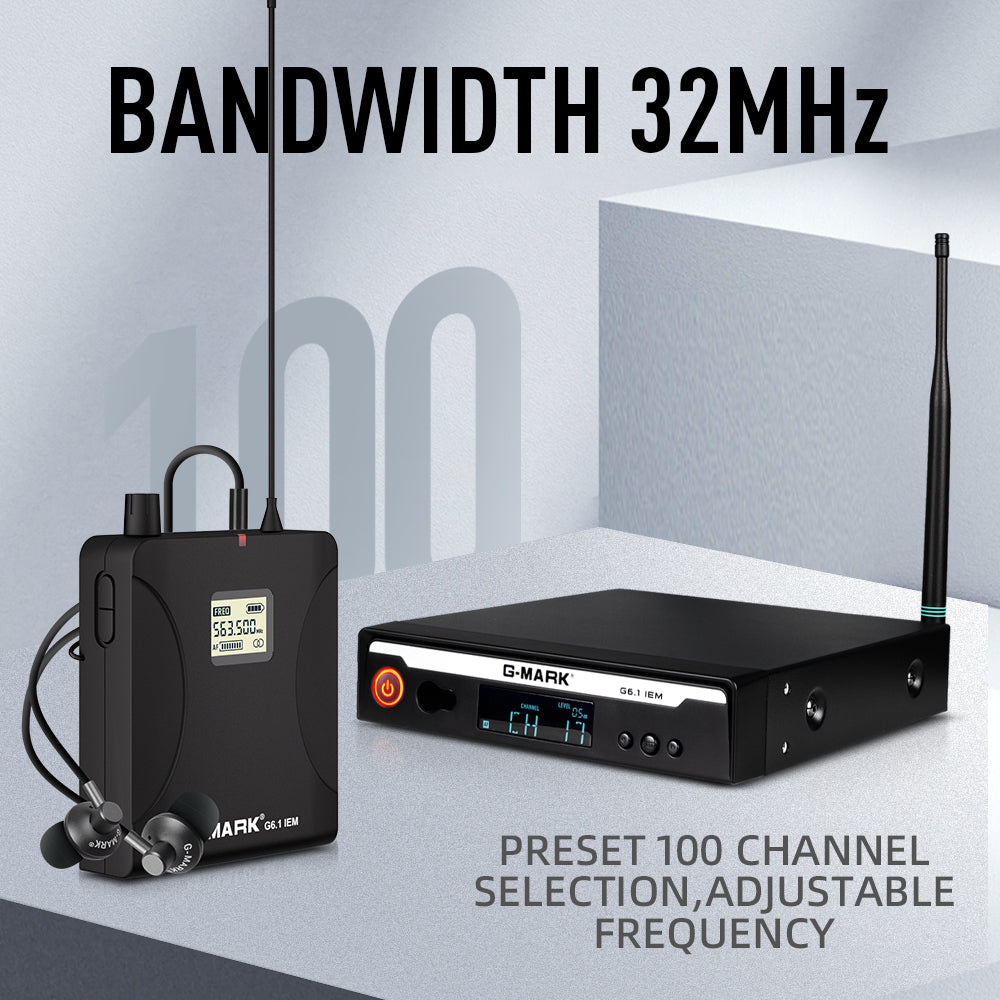

【40 Channels】With a total of 100 channels, this in ear monitor has the widest tuning range, ultra-linear RF transmission and a stronger signal than any other in-ear monitoring system. 20Hz-25KHz wide frequency response, 107 dB dynamic range.

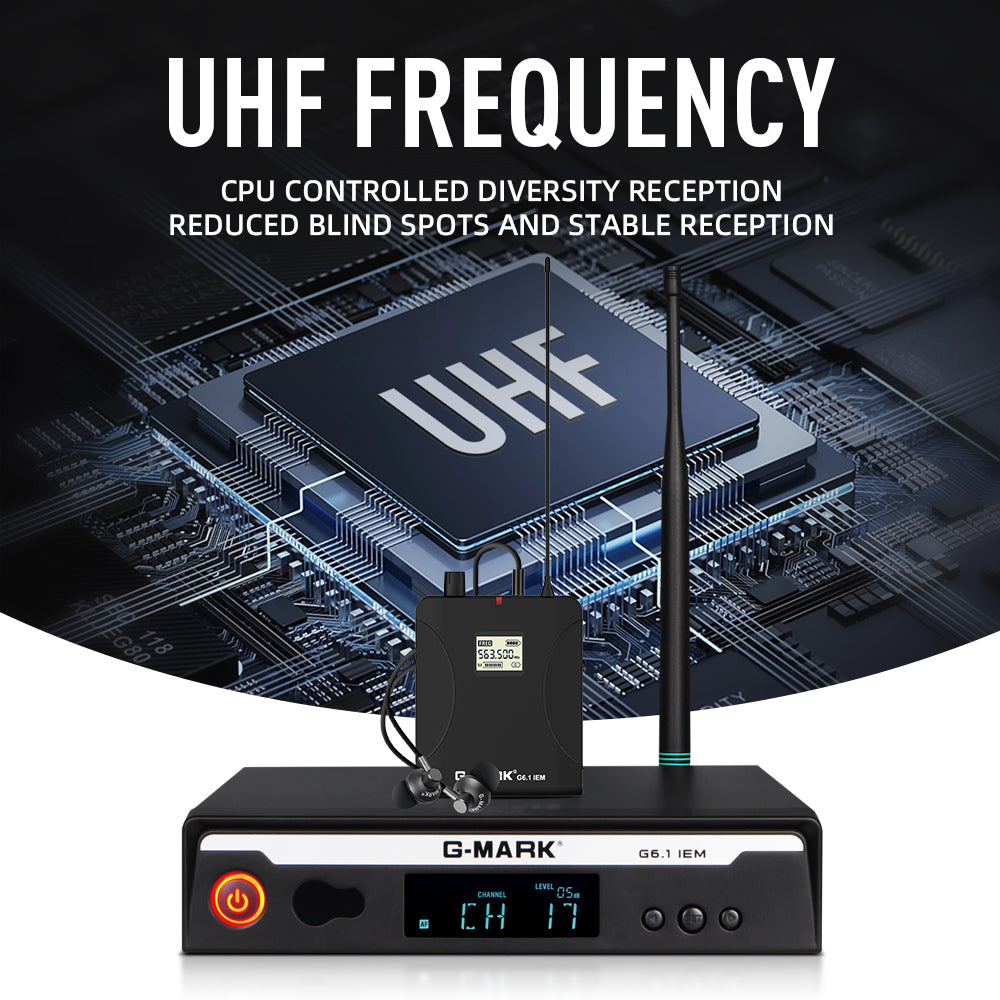

【UHF Band】560-600Mhz wireless in-ear monitor system, build your personal or team monitor system. Uncompressed wireless signal transmission, low noise and delay. Provides a smooth frequency response for any headphone.
1. Press the setting key
2. Rotate the knob to adjust the frequency group
3. Press the set key again to lock
4. Rotate the left and right keys to adjust the frequency
5. Then press the set key to lock

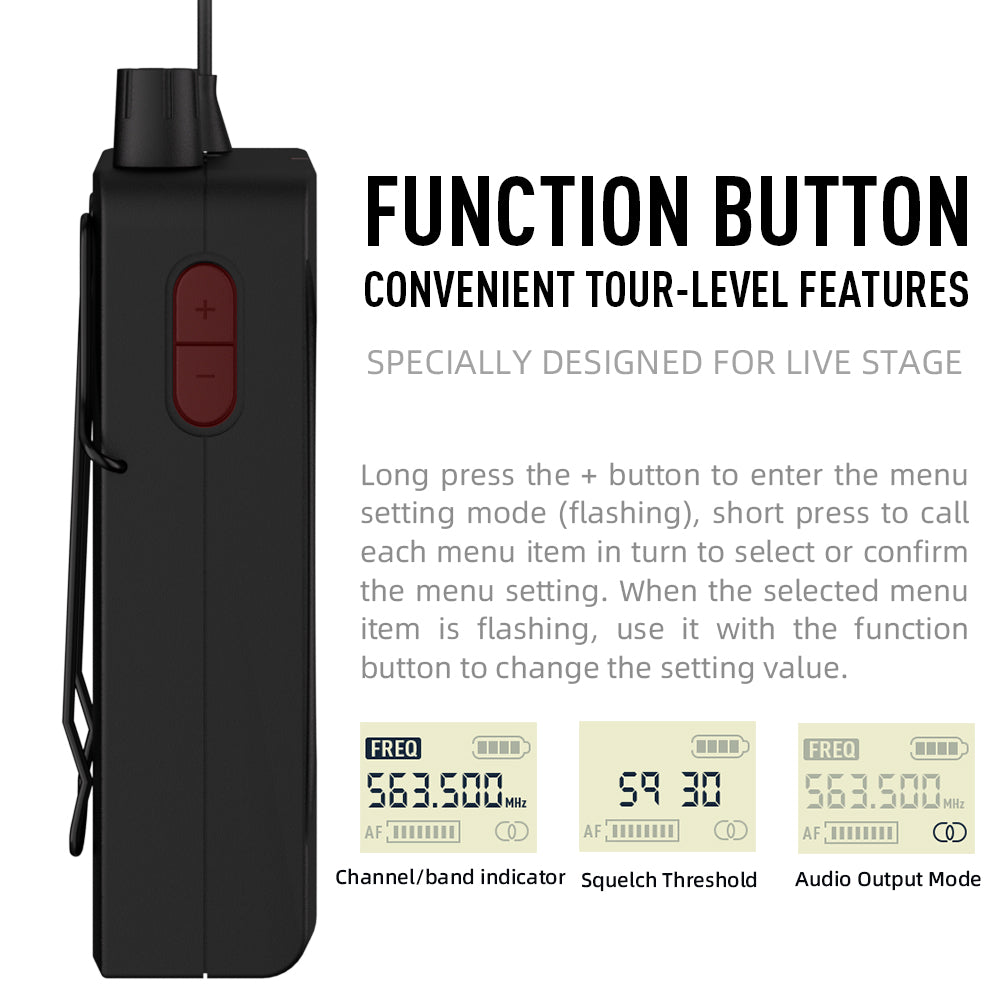

6. Press the bodypack setup button
7. Press the up and down keys to adjust the frequency band
8. Finally press esc to complete
1. Press the setting key
2. Press the up and down keys to select stereo/mono
3. When the stereo/mono logo starts to flash, press up and down to select the desired mode,
4. Press the set key again to lock the mode
Carrier range: 500 ~ 580,600 ~ 680,900 ~ 980
Oscillation mode: PLL phase-locked frequency synthesis
Tune the stepping: 25KHz
Modulation mode: FM stereo modulation
Transmit power:≥50mW
Modulation:士40KHz
Audio response range: 40Hz-15KHz

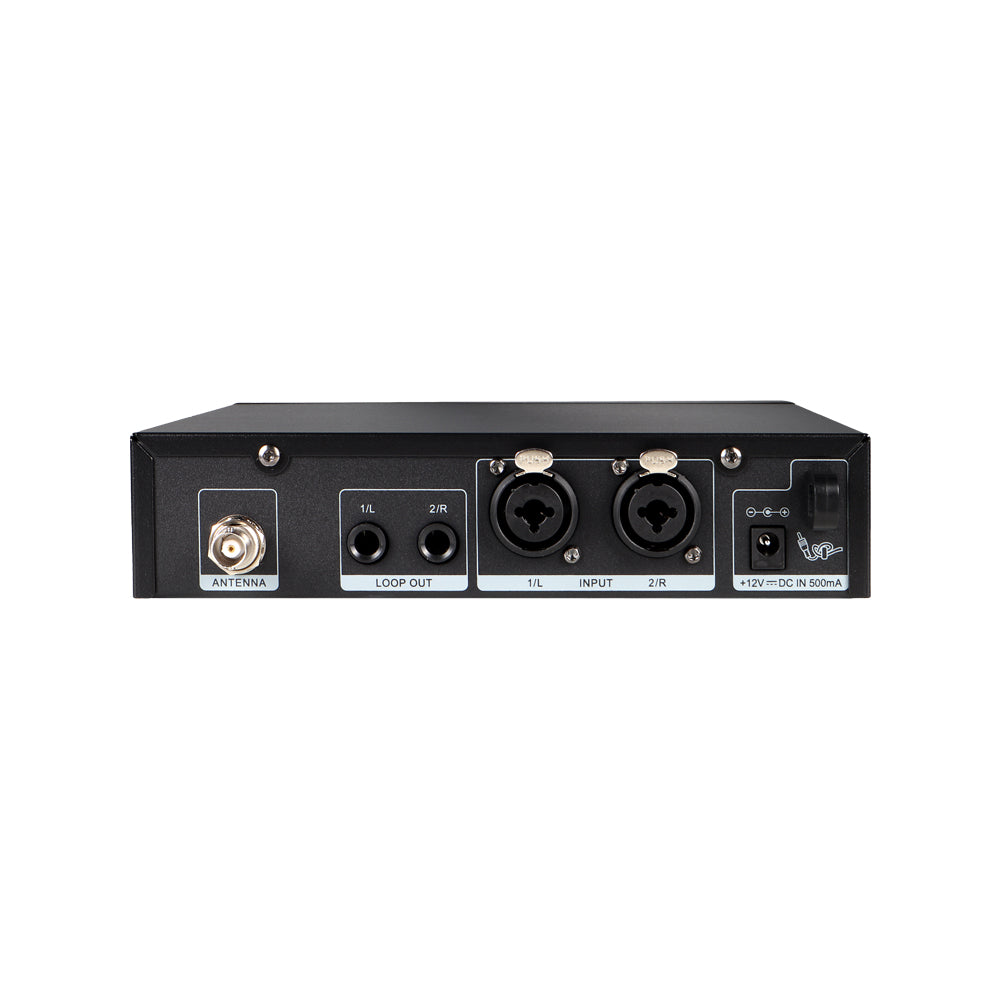

connection method: XLR or 6.3mmφ

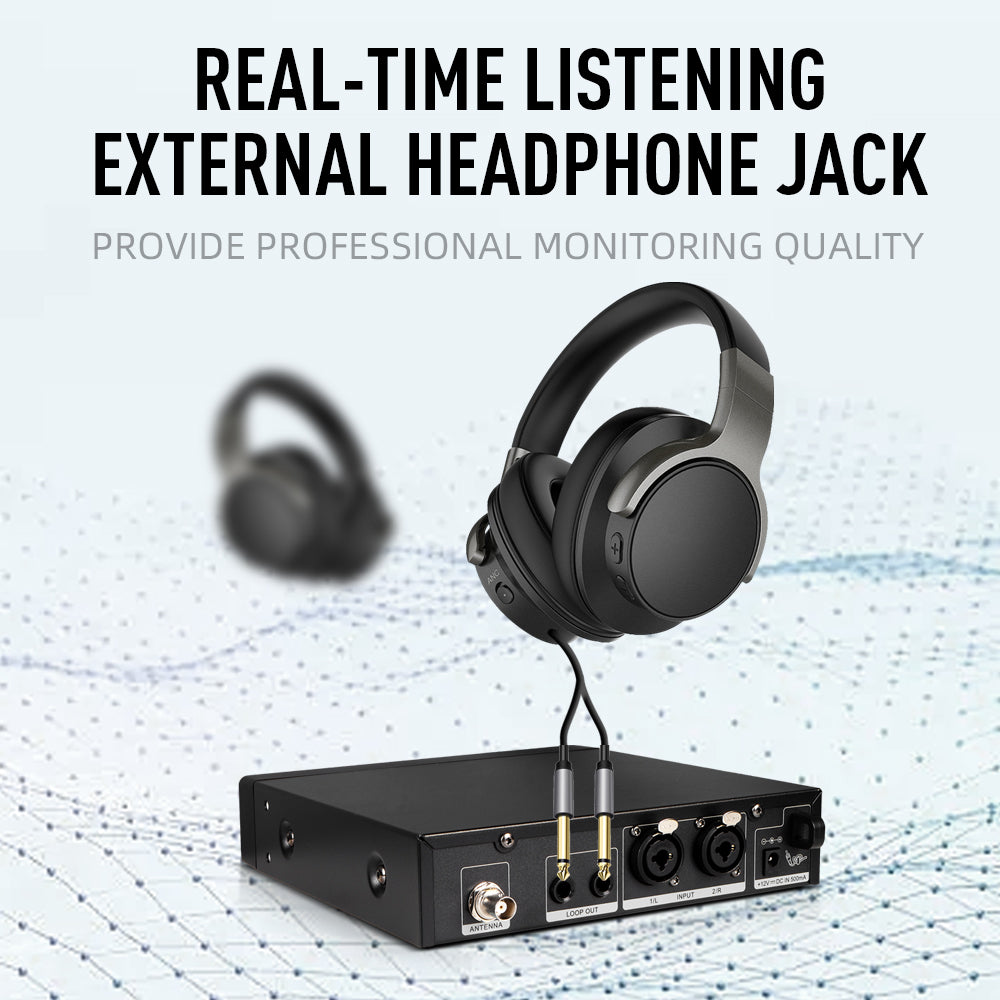

Headphone output: 6.3mmφ
Output load impedance:≥16Q 16600.
size(mm): 210(L)x 45(H)x 148(D)
weight (kg) : 1.1

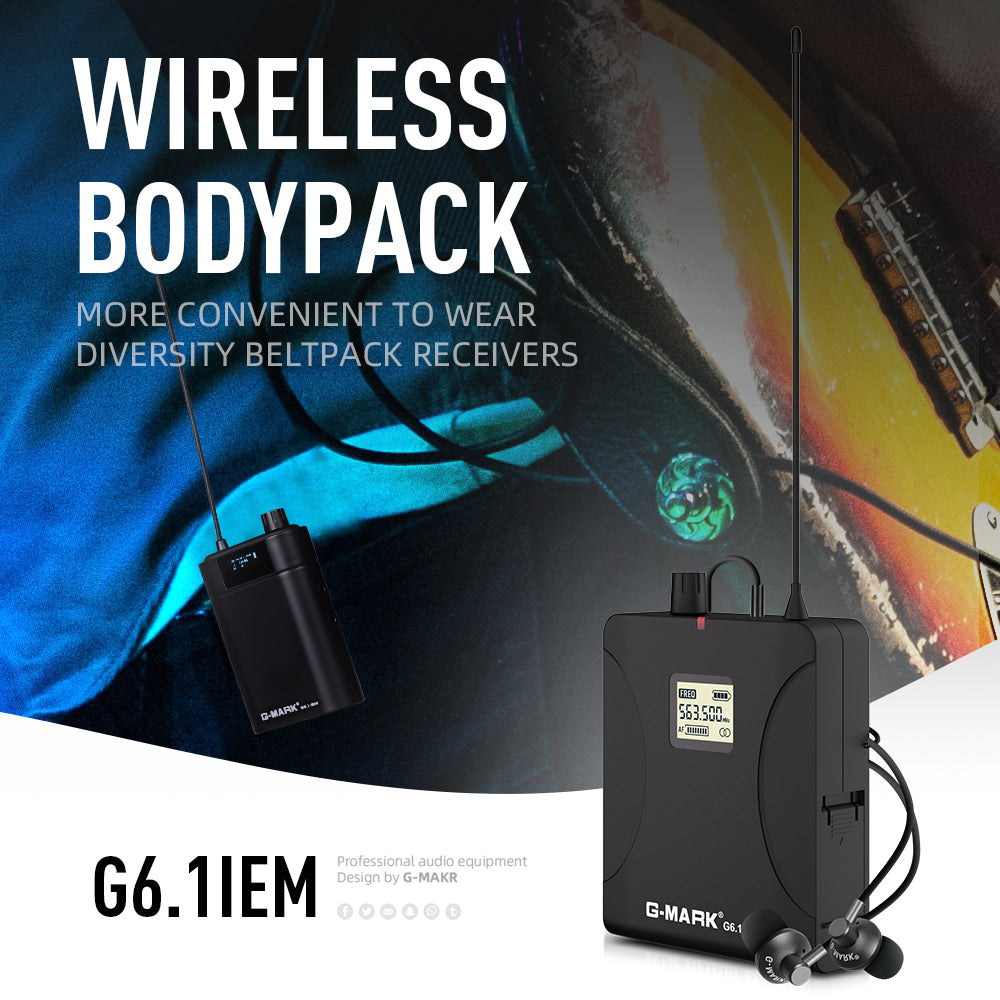

BODYPACK RECEIVER:
Quantity received: Unlimited
Carrier range: 500~ 580,600 ~ 680, 900 ~ 980
Oscillation mode: PLL phase-locked frequency synthesis
Tune the stepping: 25KHz
Modulation mode: FM stereo modulation
sensitivity: in the input3μV When entered, S/N>60dB
Stereo separation:≥45dB at 1KHz
Audio response range: 40Hz-15KHz
Output socket: 3.5mmφ
Output power: 2x50mW/ 1KHz (THD 3%)
Headphone output load impedance:≥16Q
size(mm): 66(L)X 108(H) X 22(D)
